Tripod Turnstiles - NEP 9000

Description

Tripod turnstiles are compact and durable access control gates with rotating three-arm mechanisms. They provide controlled entry in high-traffic areas such as stadiums, subway stations, and office buildings, ensuring secure and efficient pedestrian flow.
Tripod Turnstiles, also known as Three-Arm Turnstiles, offer a secure way to control pedestrian access to buildings, offices, and public outdoor areas. Whether you are looking to install a Tripod Turnstile or Pedestrian Turnstile to enhance security, maximize space efficiency, or achieve a compact design at your building's entrance, there is a Tripod Turnstile to suit your needs.
The NEP-9000 Tripod Turnstile features an elegant and modern design, making it an ideal contactless access control solution for sites that require high aesthetics, compactness, and comfort. It is perfect for premises with strict access restrictions to protect valuable assets or confidential data, or for pathways with high bi-directional traffic.

Note: Customizable options are available upon request.

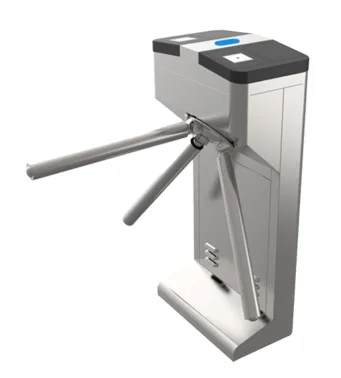

NEP-9000, Tripod Turnstiles, Tripod gates, Tripod Entry Gates,

DC Brushless Anti-Collision Motor
New generation of 24 VDC Brushless Motor gives stable operation, energy saving and high efficiency over 12 Million Open and Close Cycles.

Visual Direction Indicators
Guides pedestrian access to the current status and guides pedestrians correct and smooth passage.

Super Powerful CPU
Industrial-grade 32-bit ARM processor.
Strong processing ability and fast response speed.

Protection Feature
Anti- Trailing or Anti Tailgating:
Automatic lock per passenger to avoid tailgating until next person is ready to throughput
Automatic Drop Arm function during emergency
Incase of fire or emergency tripod arm automatically drop

Access Modes
Card Reader: Support IC/ID card, NFC card, CPU card, etc.
QR / Barcode Reader: Mobile or Paper QR code
Face Recognition

Integrate Multiple Systems
Connected with the Smart Card System, Access Control System, Consumer System, Ticketing system, Visitor System, etc.

MakeNeptune
ModelNEP-9000
MechanismMotorized/ Non Motorized
Motor /Drive Unit24VDC Brushless DC Motor / Servo
Motor
Power SupplyAC 230V (+/- 10%), 50Hz
Power Consumption 35 Watt
Power Failure Fail Safe or Fail Secure
Pass Speed or Throughput (Normally
Closed)
35~40 Person / Minute (Excluding Card
Authentication)
Pass Speed or Throughput (Normally Open)Selectable
Opening/Closing Time0-2 Sec. Configurable
Hold Time1-60 Sec (configurable)
MovementBi-Directional (Programmable)
LED / Visual IndicatorsAvailable
MCBF (Mean Cycle Between Failure)12 Million
MTTR (Mean Time To Repair)Less than 30 min
UsagesIntensive Use (100%)
Communication InterfaceRS485, Dry Contact
Input for Voltage Free ContactFIRE, Emergency, Access Control
Housing Material (Standard Housing)AISI 304 B rushed or Satin
Housing Material (Optio al)AISI 316 or MS (colour option)
FinishBrushed SS or Polished
Thickness of Housing Material 1.2 MM
Ingress ProtectionIP 54
ApplicationIndoor / Outdoor
Working Temperature Range-25 to +70 Degree C
Relative humidity<95% No Condensation
Overall Dimensions of Cabinet480*280*980
Passage Width550 MM (Standard) / 900 MM (Wide)
Weight65KG
Noise During Operation40db
CertificationCE
Integration OptionAny Third Party Access Control
FeaturesAnti Tailgating, Auto Reset
