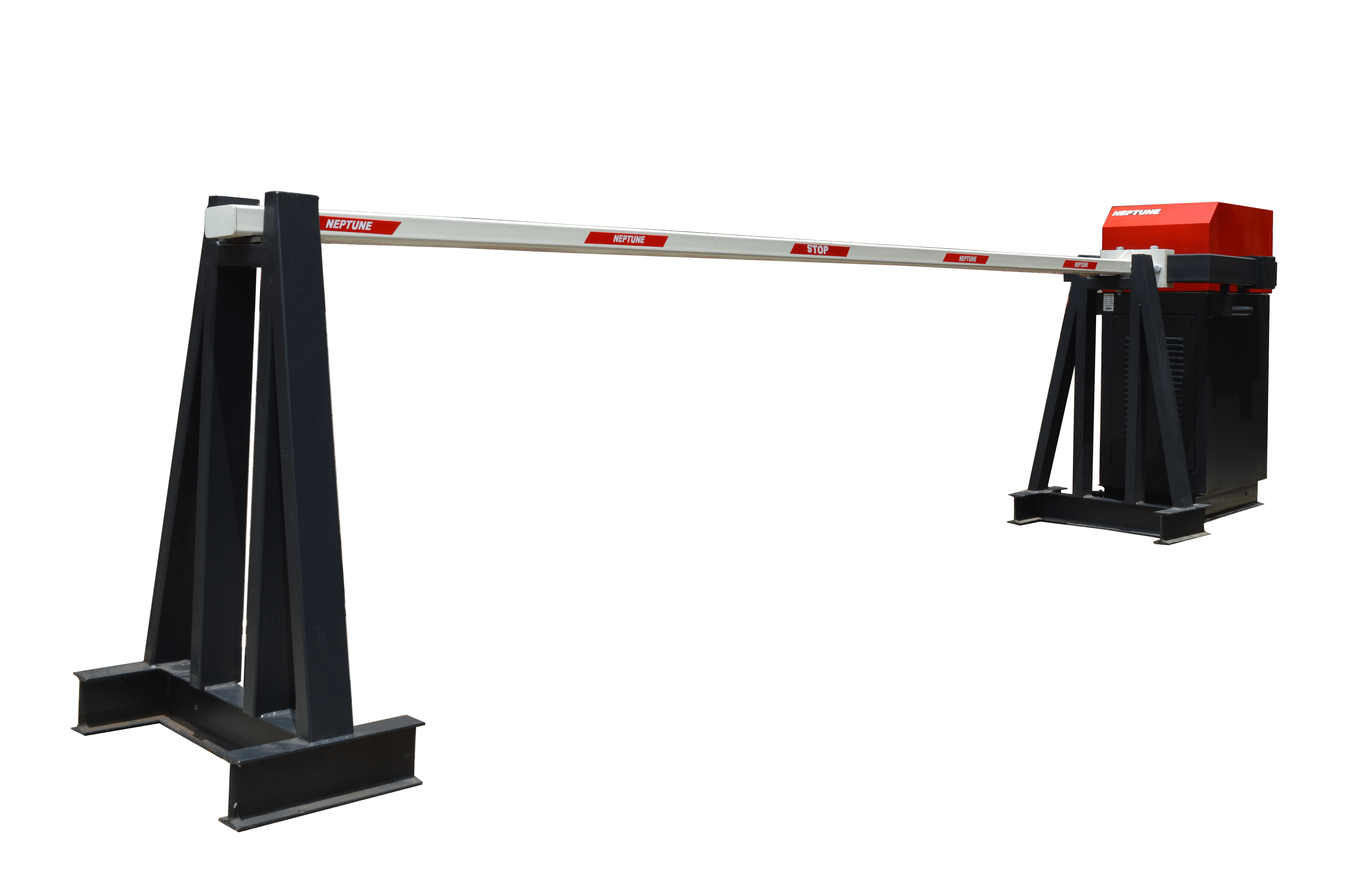

Crash Rated Drop Arm Barrier

Description

NEPTUNE Crash Rated Boom Barriers are designed to protect sensitive areas that require high level of security. Cutting edge internal hydraulic power pack of NCRB Series provides silent and smooth operation with ease of installation and maintenance. The product is engineered to withstand high impact forces by destroying the front suspension system of the hostile vehicle. In cooperation with an accredited crash test laboratory, the product is certified from ARAI for Crash Rating ASTM 2656-18 M30-P1.

Models Available

NCRB K4-3 Crash Rated Boom Barrier for upto 3 Meter
NCRB K4-4 Crash Rated Boom Barrier for upto 4 Meter
NCRB K4-5 Crash Rated Boom Barrier for upto 5 Meter
NCRB K4-6 Crash Rated Boom Barrier for upto 6 Meter

The certification is also equivalent to D/7200 [N2B}/48/90.0.0 as per ISO IWA 14-2:2013 standards and D/7200/48/90/640 As per BSI Pas 68 (2013). Successfully stimulation impact tested against a range of different threats and successfully stimulated impact tested to ASTM-2656, capable of stopping a 7200 Kg truck traveling at 48 km/h (30 MPH) within one meter (750mm). With reinforced infrastructure and powerful hydraulic unit, NCRB Series is an ideal choice for high frequency heavy duty operation, achieving high level of security while maintaining an aesthetic look.

Industrial hydraulically operated automatic crash rated boom barrier. Designed for easy installation and also maintenance. With the help of microprocessor controlled electronics, open/close function can be achieved
by every kind of card readers, biometric readers like fingerprint or hand shape, radio control, on/off key switch etc. Besides, safety accessories like photocells, inductive loop detectors, flashing lights or red/green
lights & ANPR can be integrated to the system. The automatic Crash Boom Barrier, and has a maximum
width of 6000 mm and has a crash beam height of 800 mm ~ 1050mm.

Features:

  • Reliable Hydraulic Power Drive Unit
  • Certified as per ASTM 2656-18 M30- P1 equivalent to K4 Crash Certification Standards to stop 7.2 Ton vehicle traveling at 50 km/h (30 MPH)
  • 100% Duty Cycle
  • Wide Range of Accessories and Safety Features
  • Best in Class Operation Speed
  • 15 Year Corrosion Protection

Application:

High Security Premises, Defense Military Sites, Embassies, Airports, Air Force Stations, Police Headquarters,
Hospitality, Refineries, Transport &Infrastructure, Government Offices, Research Centers, Sensitive Sites
(Subject to Ram Attacks)

MakeSPECIFICATIONS
Arm width3000 – 6000 mm
Weight (approximately)1100-1600 kg
Drive UnitElectro -Hydraulic
Environmental durabilityShot blast, hot zinc sprayed (galvanised), primed and finished with a final coat of polyurethane paint.  This process also provides a 15-year corrosion protection system for exterior, industrial polluted inland sites to BS5493, 1977 (Revised 1984). Alternative finishes also available on request.
StructureHeavy Duty
Type of SteelS235/RAEX250-Quality 37 minimum or FE 360 ( Galvanised)
Red/Green LED traffic light (Optional)Available with steel post 2 meter height and electrostatically powder coated
HingesHeavy duty hardened and or stainless steel AISI 303 Quality for hydraulic cylinder connections and moving part of barrier
BearingBronze
Power380V-420V. 3 Phase
Current Composition6~8 Ampere
Power Failure OptionManual Hand Pump
Raise lower time4~6 Seconds, Depending upon length & Configuration
Electronic Motion Adjustment1 ~ 20 Levels
Duty Cycle100% (for intensive use frequency)
Desktop ButtonRaise, lower, emergency stop, key operated
Extra I/O at the PCBEnough I/O’s to connect any card reader, extra override keyboard etc. later on
Limit SwitchAvailable to sense the position of the barrier
Loop detector (optional)For Vehicle Safety
Power back-up system optionsDC motor and batteries, UPS
CabinetIP 66 with continuous ventilation
Motor Power1500 Watt (4 mtr) & 2000 W (5 mtr& 6 mtr), 1500 rpm
CertificationCE Approved, ISO
Environmental conditions-20 to +65°C, 95% Humidity
