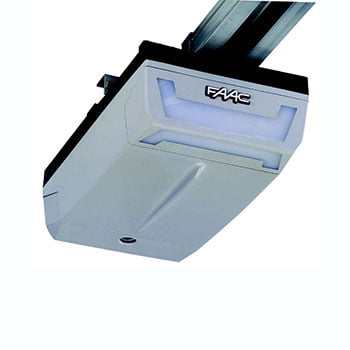

D600-D1000 Electro- mechanical garage door operators

Description

The Faac D600-D1000 N ideal for sectional or spring/counter-balanced up-and-over doors, for residential use (D600) and also condominium (D1000) use.

  • Anti-burglary non-reversing facility: there is no need to install locks and bolts
  • Bi-stable release device (patented)
  • The anti-crushing device makes it possible to build automated systems conforming to European Directives
  • The safety edge is not necessary
  • Quick, simple installation thanks to the pre-installed rail and installation of the automated system without any tools with rotation coupling
  • Chain/belt transmission
  • Adjustable travel limit electronic slow-down

# D600 D1000
Power supply voltage 230 Vac 230 Vac
Electric Motor 24 Vdc 24 Vdc
Max absortbed power 220W 350 W
Thurst force 600N 1000N
Type of use continuous continuous
Clearance required from ceiling 35mm 35mm
Courtesy lamp 230 Vac - 40 W (max) 230 Vac - 40 W (max)
Courtsey lamp timing 120 sec 120 sec
Carriage standard off load speed 6.6 m/min 8.9m/min
Carriage reduced off load speed 3.8 m/min 4.5m/min
Carriage speed at slowdown 1.3m/min 1.1
Noise at standard speed 52 dB 52 dB
Travel length at slow-down variable from setup variable from setup
Intrinsic safety device standard supply standard supply
Protection class for internal use only (IP20) for internal use only (IP20)
Operating ambient temperature from -20°C to +55°C from -20°C to +55°C
Dimensions (L x P x H)mm 360 x 200 x 145 360 x 200 x 145
