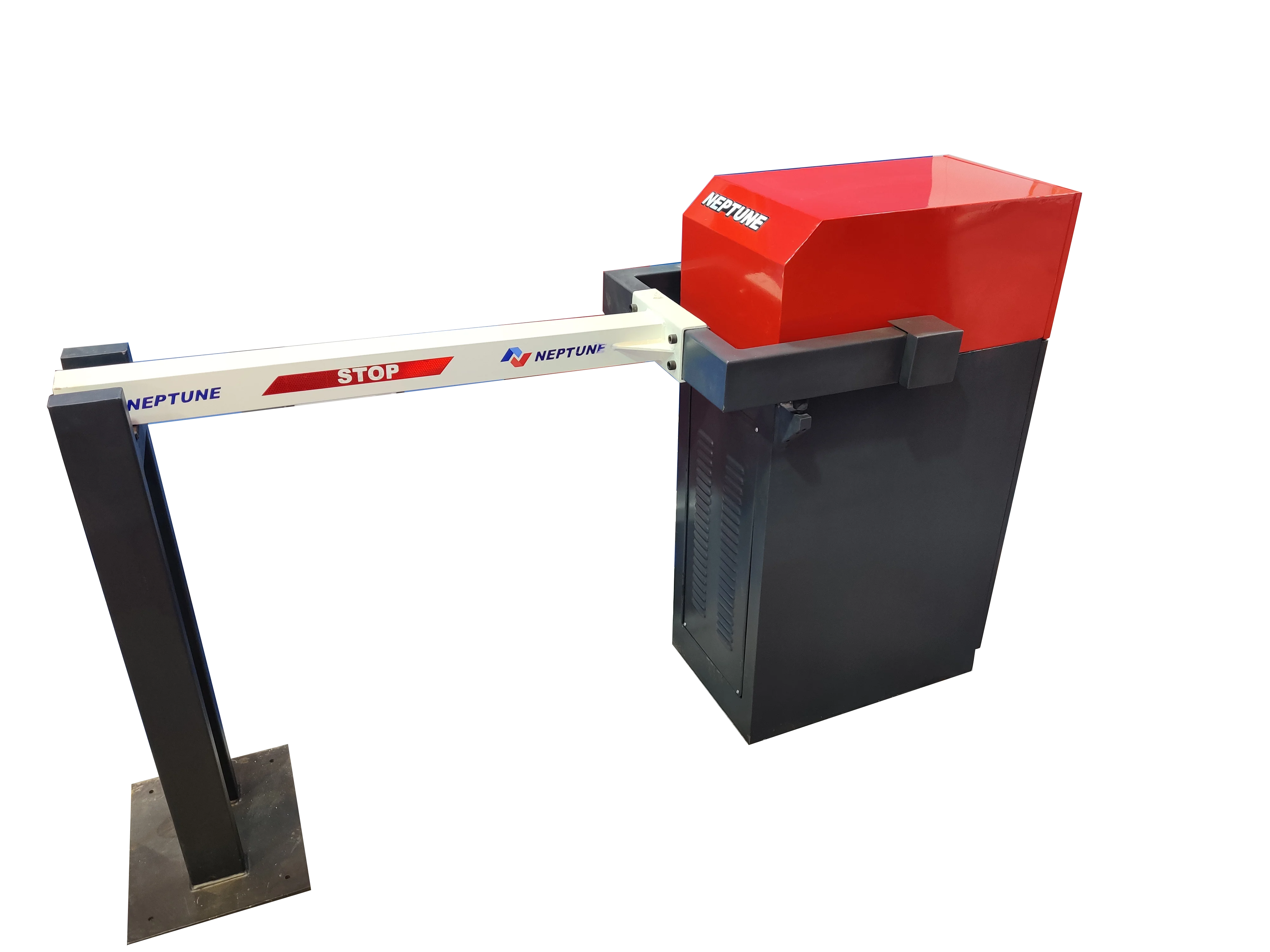

Strong Arm Barrier

Description

Strong arm barrier designed to withstand minor impact of vehicle. Mechanical structure and its boom arm made strong enough to withstand adverse environment condition and impact of low intensity. This is suitable to use in all weather condition and areas for security vehicle traffic control. The Strong arm barrier of up to 5m is suitable for heavy continuous traffic. The barrier is designed with strong heavy arm an intermediate solution of normal traffic barrier and crash rated barrier.

The Ideal Solution for Heavy Traffic
The Strong arm barrier of up to 5m is suitable for heavy continuous traffic. The barrier is designed with strong heavy arm an intermediate solution of normal traffic barrier and crash rated barrier.

Totally Flexible
The Strong arm barrier can be used in place of normal traffic barrier also as an alternate to crash barrier, required less space compare to crash barrier. Its electronic unit have inbuilt loop detector capable to integrate with any third party access control.

Long-term Reliability
Its very strong self supporting structure. Use of cutting edge materials and treatment such as galvanized, phosphating and dust painted plus tried and tested hydraulic technology, all combine to ensure long-life.

Leading-edge Technology
SMT microprocessor electronic technology is supplied standard to ensure exceptional performance. Its control unit have various digital input and output. Also have 4 programmable output with selectable 18 programs have digital display and function key for easy programming.

Electronic Intelligence
The electronic intelligence of the barrier can identify the barrier position, can generate maintenance alarm after set number of operation cycle.

Make SPECIFICATIONS
Model Strong Arm Barrier
Drive Hydraulic
Use Frequency Intensive
Max. Boom Length 5 Mtr.
Power Supply  380-440 VAC 3 Phase
Absorbed Power 750 Watt
Boom Material Composite Material
Working Temperature -10° C to +60° C
Protection IP-55
Open/Close Time 3-6 Sec.
Work Time Programmable (0-4 min.)
Pause Time Programmable (0-4 min.)
Rapid Connector 5 Pin for Remote Receiver
Operating Logic Automatic Parking, Semi- Automatic Parking, condo etc.
Optional Accessories Photocell, traffic light, Flashing light, Buzzer, Induction loop etc.
Certification  CE
